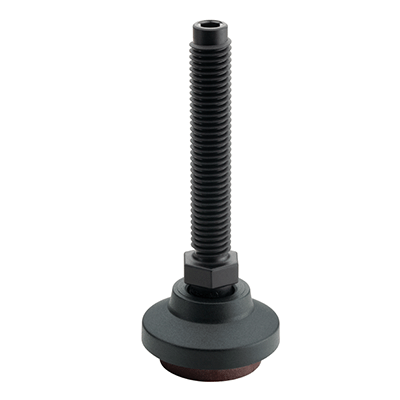

LS.VA-50-14-STP-M12X99
LS.VA-50-14-STP-M12x99
- Code: 344334
- Description: LS.VA-50-14-STP-M12x99
- Rotation: 0
- D: 50
- d: M12
- d1: 40
- l: 99
- l1: 28
- l2: 6
- l3: 7
- h: 19
- s: 16
- s1: 5
- a: 14
- l2 0: 6
- l2 0.4: 5
- l2 0.6: 4.7
- Area damping insert: 1000
- Max limit static load: 400
- Weight: 50.5
