VC.253

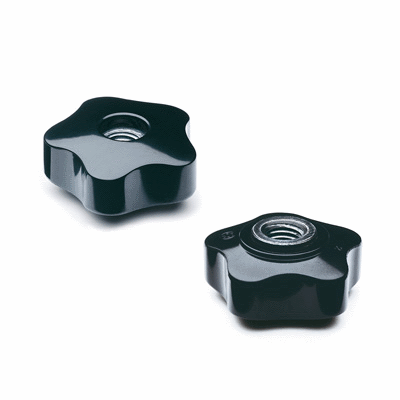

Lobe knobs

Teknisk datablad
GN.32034-gn_949_d

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 6 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 67001
    Description VC.253/40 A-M10
    D
    —
    • —
    d6H
    —
    • —
    L
    —
    • —
    d1
    —
    • —
    d2
    —
    • —
    d3
    —
    • —
    l2
    —
    • —
    h
    —
    • —
    h1
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 67001
    Description VC.253/40 A-M10
    D 40
    d6H M10
    L 19
    d1 23
    d2 17
    d3 14
    l2 3
    h 15
    h1 1.5
    Weight 34
    Les mer
  • Code 67011
    Description VC.253/40 A-M12
    D 40
    d6H M12
    L 19
    d1 23
    d2 17
    d3 14
    l2 3
    h 15
    h1 1.5
    Weight 30
    Les mer
  • Code 66951
    Description VC.253/40 A-M8
    D 40
    d6H M8
    L 19
    d1 23
    d2 17
    d3 14
    l2 3
    h 15
    h1 1.5
    Weight 38
    Les mer
  • Code 67101
    Description VC.253/50 A-M12
    D 50
    d6H M12
    L 21
    d1 26
    d2 19
    d3 14
    l2 3
    h 16
    h1 1.5
    Weight 50
    Les mer
  • Code 67201
    Description VC.253/60 A-M12
    D 60
    d6H M12
    L 24
    d1 30
    d2 19
    d3 16
    l2 4
    h 16
    h1 1.5
    Weight 75
    Les mer
  • Code 67301
    Description VC.253/85 A-M14
    D 85
    d6H M14
    L 30
    d1 32
    d2 18
    d3 18
    l2 6
    h 22
    h1 1.5
    Weight 135
    Les mer
