VC.254

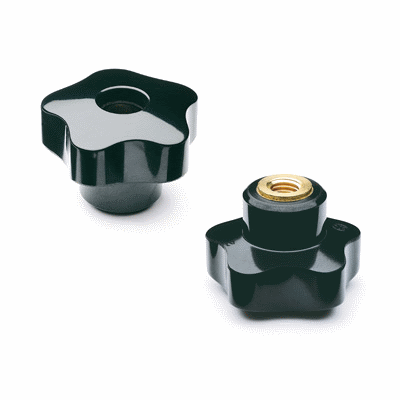

Lobe knobs

Teknisk datablad
GN.32036-gn_949_a

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 11 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 67521
    Description VC.254/40 B-M10
    D
    —
    • —
    d6H
    —
    • —
    L
    —
    • —
    d1
    —
    • —
    d2
    —
    • —
    d3
    —
    • —
    l2
    —
    • —
    h
    —
    • —
    h1
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 67521
    Description VC.254/40 B-M10
    D 40
    d6H M10
    L 28
    d1 21
    d2 14
    d3 13
    l2 13
    h 18
    h1 1.5
    Weight 34
    Les mer
  • Code 67501
    Description VC.254/40 B-M6
    D 40
    d6H M6
    L 28
    d1 21
    d2 14
    d3 13
    l2 13
    h 18
    h1 1.5
    Weight 42
    Les mer
  • Code 67511
    Description VC.254/40 B-M8
    D 40
    d6H M8
    L 28
    d1 21
    d2 14
    d3 13
    l2 13
    h 18
    h1 1.5
    Weight 38
    Les mer
  • Code 67601
    Description VC.254/50 B-M10
    D 50
    d6H M10
    L 34
    d1 25
    d2 16
    d3 13
    l2 15
    h 22
    h1 1.5
    Weight 62
    Les mer
  • Code 67611
    Description VC.254/50 B-M12
    D 50
    d6H M12
    L 34
    d1 25
    d2 16
    d3 13
    l2 15
    h 22
    h1 1.5
    Weight 55
    Les mer
  • Code 67701
    Description VC.254/60 B-M10
    D 60
    d6H M10
    L 38
    d1 27
    d2 17
    d3 15
    l2 18
    h 26
    h1 1.5
    Weight 97
    Les mer
  • Code 67711
    Description VC.254/60 B-M12
    D 60
    d6H M12
    L 38
    d1 27
    d2 17
    d3 15
    l2 18
    h 26
    h1 1.5
    Weight 90
    Les mer
  • Code 67721
    Description VC.254/60 B-M14
    D 60
    d6H M14
    L 38
    d1 27
    d2 17
    d3 15
    l2 18
    h 26
    h1 1.5
    Weight 85
    Les mer
  • Code 67801
    Description VC.254/70 B-M12
    D 70
    d6H M12
    L 45
    d1 30
    d2 17
    d3 17
    l2 21
    h 26
    h1 1.5
    Weight 125
    Les mer
  • Code 67811
    Description VC.254/70 B-M14
    D 70
    d6H M14
    L 45
    d1 30
    d2 17
    d3 17
    l2 21
    h 26
    h1 1.5
    Weight 115
    Les mer
  • Code 67901
    Description VC.254/85 B-M16
    D 85
    d6H M16
    L 56
    d1 35
    d2 24
    d3 18
    l2 32
    h 35
    h1 2
    Weight 210
    Les mer
