Hjem / Industrikomponenter / Clamping knobs / Lobe knobs / VCHT

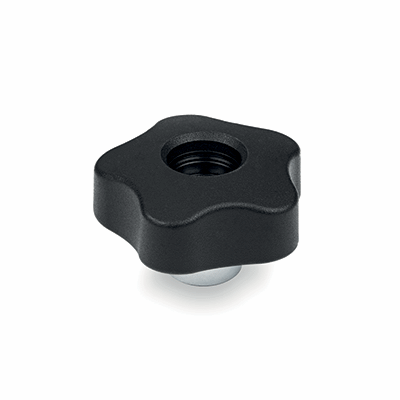

VCHT

Lobe knobs

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

VCHT

Lobe knobs

Bracket Material

Stainless steel(0)
Steel(0)

Material

Aluminium(0)
Aluminium-Steel(0)
Aluminium|Stainless steel(0)
Brass(0)
Brass zinc alloy(0)
Brass-Steel(0)
Cast iron(0)
Die-cast zinc alloy(0)
Duroplast(0)
Duroplast-Chromium(0)
Duroplast-Stainless steel(0)
Duroplast-Steel(0)
Oslrubber(0)
Rubber(0)
Rubber-Stainless steel(0)
Rubber-Steel(0)
Silicon(0)
Stainless steel(0)
Stainless steel A4(0)
Steel(0)
Technopolymer(22)
Technopolymer-Die-cast zinc alloy(0)
Technopolymer-Stainless steel(0)
Technopolymer-Steel(0)
Technopolymer-Zamac(0)
Technopolymer|Stainless steel(0)
Titanium(0)
Zinc(0)

Bushing Material

Steel(0)

Carrying Capacity

0 - 1400 N(0)
10001 - 25000 N(0)
1401 - 2600 N(0)
2601 - 5000 N(0)
5001 - 10000 N(0)

Diameter

Plunger Diameter

Type Of Assembly

Blind hole(0)
Blind holes(0)
Blind holes-Threaded screws(0)
For welding(0)
Not drilled(0)
Pass-through hole(22)
Pass-through holes(0)
Pass-through holes-Blind holes(0)
Pass-through holes-Threaded screws(0)
Plain hole(0)
Plain hole and keyway(0)
Snap-in(0)
Square hole(0)
Threaded screw(0)
Threaded screws(0)
Without holes(0)

Type Of Tube

Round(0)
Square(0)
Square-Round(0)

Diameter Bases

100(0)
120(0)
125(0)
160(0)
200(0)
25(0)
26(0)
30(0)
32(0)
40(0)
50(0)
60(0)
70(0)
80(0)

Connecting Thread

1/2-13(0)
3/8-24(0)
M 10(0)
M 10x1(0)
M 12(0)
M 12x1.5(0)
M 16(0)
M 16x1.5(0)
M 20(0)
M 20x1.5(0)
M 24x2(0)
M 6(0)
M 6x0.75(0)
M 8(0)
M 8x0.75(0)
M 8x1(0)

External Diameter

Handle

fixed handle(0)
fold away handle(0)
revolving handle(0)
safety fold away handle(0)
without handle(0)

Hole

Lever Length

Wheel Base

Threaded Screw

1/2-13(0)
1/4-20(0)
10-32(0)
3/8-16(0)
5/16-18(0)
5/8-11(0)
63(0)
M 10(0)
M 12(0)
M 14(0)
M 16(0)
M 2(0)
M 2,5(0)
M 20(0)
M 20x1.5(0)
M 24(0)
M 24x2(0)
M 3(0)
M 30(0)
M 30x2(0)
M 36x2(0)
M 4(0)
M 42x2(0)
M 5(0)
M 6(0)
M 8(0)
M 8x22(0)

Hole Distance

Threaded Connection

G 1/2(0)
G 1/4(0)
G 1/8(0)
G 3/8(0)
M 10(0)
M 10x1.25(0)
M 10x1.5(0)
M 12(0)
M 14x1.5(0)
M 5(0)
M 6(0)
M 8(0)
NPT1/4(0)
NPT3/8(0)

Type Of Bellow

Multi-bellow(0)
Wibellow(0)

Type Of Vacuum Cups Holder

Anti-rotating(0)
Fixed(0)
Micro(0)
Mini-Anti-rotating(0)
Mini-Built-in Spring(0)
Mini-Fixed(0)
Mini-Spring(0)
Spring(0)

Vacuum Cup Holders Dimension

101 - 150(0)
151 - 192(0)
43 - 74(0)
75 - 100(0)

Vacuum Cups Dimension

101 - 143(0)
11 - 20(0)
21 - 30(0)
31 - 40(0)
4 - 10(0)
41 - 50(0)
51 - 60(0)
61 - 70(0)
71 - 80(0)
81 - 100(0)

Connector

DIN43650C(0)
KN(0)

length
pcs
set
stk

Viser alle 24 resultater

Vennligst velg en deltype for å få relevante valg.

Lukk

Code 168781

Description VCHT.25 FP-AZ-4

D

—

—

d6H

—

—

dH7

—

—

L

—

—

d1

—

—

d3

—

—

l1

—

—

l2

—

—

Weight

—

—

CAD

Les mer

Code 168781

Description VCHT.25 FP-AZ-4

D 25

d6H -

dH7 4

L 19

d1 10

d3 8.5

l1 15

l2 7

Weight xx

Les mer
Code 168782

Description VCHT.25 FP-AZ-5

D 25

d6H -

dH7 5

L 19

d1 10

d3 8.5

l1 15

l2 7

Weight xx

Les mer
Code 168786

Description VCHT.25 FP-AZ-M4

D 25

d6H M4

dH7 -

L 19

d1 10

d3 8.5

l1 15

l2 7

Weight xx

Les mer
Code 168787

Description VCHT.25 FP-AZ-M5

D 25

d6H M5

dH7 -

L 19

d1 10

d3 8.5

l1 15

l2 7

Weight xx

Les mer
Code 168801

Description VCHT.32 FP-AZ-5

D 32

d6H -

dH7 5

L 22.5

d1 12

d3 10

l1 16.5

l2 8.5

Weight 17

Les mer
Code 168802

Description VCHT.32 FP-AZ-6

D 32

d6H -

dH7 6

L 22.5

d1 12

d3 10

l1 16.5

l2 8.5

Weight 16

Les mer
Code 168806

Description VCHT.32 FP-AZ-M5

D 32

d6H M5

dH7 -

L 22.5

d1 12

d3 10

l1 16.5

l2 8.5

Weight 17

Les mer
Code 168807

Description VCHT.32 FP-AZ-M6

D 32

d6H M6

dH7 -

L 22.5

d1 12

d3 10

l1 16.5

l2 8.5

Weight 16

Les mer
Code 168821

Description VCHT.40 FP-AZ-6

D 40

d6H -

dH7 6

L 27

d1 14

d3 12

l1 20

l2 10

Weight 30

Les mer
Code 168822

Description VCHT.40 FP-AZ-8

D 40

d6H -

dH7 8

L 27

d1 14

d3 12

l1 20

l2 10

Weight 29

Les mer
Code 168826

Description VCHT.40 FP-AZ-M6

D 40

d6H M6

dH7 -

L 27

d1 14

d3 12

l1 20

l2 10

Weight 30

Les mer
Code 168827

Description VCHT.40 FP-AZ-M8

D 40

d6H M8

dH7 -

L 27

d1 14

d3 12

l1 20

l2 10

Weight 29

Les mer
Code 168842

Description VCHT.50 FP-AZ-10

D 50

d6H -

dH7 10

L 30

d1 18

d3 15

l1 20

l2 10

Weight 45

Les mer
Code 168841

Description VCHT.50 FP-AZ-8

D 50

d6H -

dH7 8

L 30

d1 18

d3 15

l1 20

l2 10

Weight 46

Les mer
Code 168847

Description VCHT.50 FP-AZ-M10

D 50

d6H M10

dH7 -

L 30

d1 18

d3 15

l1 20

l2 10

Weight 45

Les mer
Code 168846

Description VCHT.50 FP-AZ-M8

D 50

d6H M8

dH7 -

L 30

d1 18

d3 15

l1 20

l2 10

Weight 46

Les mer
Code 168861

Description VCHT.63 FP-AZ-10

D 63

d6H -

dH7 10

L 35.5

d1 20

d3 19

l1 29

l2 14

Weight 70

Les mer
Code 168862

Description VCHT.63 FP-AZ-12

D 63

d6H -

dH7 12

L 35.5

d1 20

d3 19

l1 29

l2 14

Weight 68

Les mer
Code 168866

Description VCHT.63 FP-AZ-M10

D 63

d6H M10

dH7 -

L 35.5

d1 20

d3 19

l1 29

l2 14

Weight 70

Les mer
Code 168867

Description VCHT.63 FP-AZ-M12

D 63

d6H M12

dH7 -

L 35.5

d1 20

d3 19

l1 29

l2 14

Weight 68

Les mer
Code 168881

Description VCHT.74 FP-AZ-12

D 74

d6H -

dH7 12

L 39.5

d1 25

d3 17

l1 29

l2 15

Weight 95

Les mer
Code 168882

Description VCHT.74 FP-AZ-16

D 74

d6H -

dH7 16

L 39.5

d1 25

d3 17

l1 29

l2 15

Weight 91

Les mer
Code 168886

Description VCHT.74 FP-AZ-M12

D 74

d6H M12

dH7 -

L 39.5

d1 25

d3 17

l1 29

l2 15

Weight 95

Les mer
Code 168887

Description VCHT.74 FP-AZ-M16

D 74

d6H M16

dH7 -

L 39.5

d1 25

d3 17

l1 29

l2 15

Weight 91

Les mer
