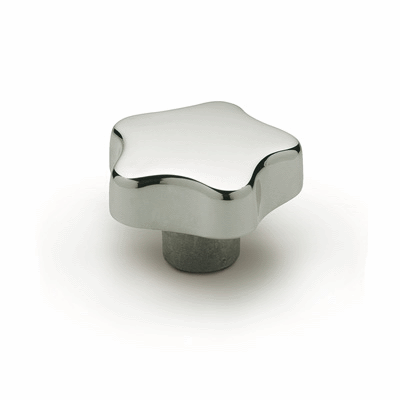

VCM.

Lobe knobs

GN.32038-gn_949_a

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 8 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 169521
    Description VCM.40-8
    D
    —
    • —
    d
    —
    • —
    dH7
    —
    • —
    L -1
    —
    • —
    d1 -0.5
    —
    • —
    l2
    —
    • —
    h min.
    —
    • —
    h
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 169521
    Description VCM.40-8
    D 40
    d -
    dH7 8
    L -1 25
    d1 -0.5 15
    l2 12.5
    h min. 15
    h 15
    Weight 28
    Les mer
  • Code 169522
    Description VCM.40-M8
    D 40
    d M8
    dH7 -
    L -1 25
    d1 -0.5 15
    l2 12.5
    h min. 15
    h 15
    Weight 28
    Les mer
  • Code 169526
    Description VCM.50-10
    D 50
    d -
    dH7 10
    L -1 32
    d1 -0.5 19
    l2 16
    h min. 18
    h 18
    Weight 53
    Les mer
  • Code 169527
    Description VCM.50-M10
    D 50
    d M10
    dH7 -
    L -1 32
    d1 -0.5 19
    l2 16
    h min. 18
    h 18
    Weight 54
    Les mer
  • Code 169531
    Description VCM.60-12
    D 60
    d -
    dH7 12
    L -1 40
    d1 -0.5 21
    l2 20
    h min. 22
    h 22
    Weight 92
    Les mer
  • Code 169532
    Description VCM.60-M12
    D 60
    d M12
    dH7 -
    L -1 40
    d1 -0.5 21
    l2 20
    h min. 22
    h 22
    Weight 88
    Les mer
  • Code 169536
    Description VCM.70-16
    D 70
    d -
    dH7 16
    L -1 46
    d1 -0.5 26
    l2 23
    h min. 28
    h 28
    Weight 142
    Les mer
  • Code 169537
    Description VCM.70-M16
    D 70
    d M16
    dH7 -
    L -1 46
    d1 -0.5 26
    l2 23
    h min. 28
    h 28
    Weight 142
    Les mer
