VCT-RC

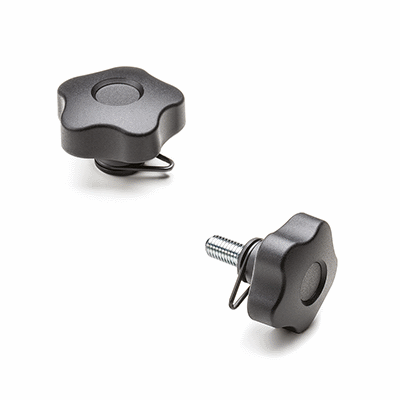

Lobe knobs

Teknisk datablad
GN.32007-gn_949_a

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Color
Accessory color
Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 24 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 68901-C9
    Description VCT.25 B-M5-RC-C9
    Color
    —
    • —
    D
    —
    • —
    d6H
    —
    • —
    L
    —
    • —
    d1
    —
    • —
    l2
    —
    • —
    h
    —
    • —
    R
    —
    • —
    C
    —
    • —
    Weight
    —
    • —
    d6g
    —
    • —
    l
    —
    • —
    CAD
    Les mer
  • Code 68901-C9
    Description VCT.25 B-M5-RC-C9
    D 25
    Color C9
    d6H M5
    L 19
    d1 13
    l2 8
    h 10
    R 20
    C 7
    Weight 10
    d6g -
    l -
    Les mer
  • Code 68906-C9
    Description VCT.25 p-M5x10-RC-C9
    D 25
    Color C9
    d6g M5
    L 19
    d1 13
    l 10
    l2 8
    R 20
    C 6
    Weight 9
    d6H -
    h -
    Les mer
  • Code 68907-C9
    Description VCT.25 p-M5x16-RC-C9
    D 25
    Color C9
    d6g M5
    L 19
    d1 13
    l 16
    l2 8
    R 20
    C 6
    Weight 10
    d6H -
    h -
    Les mer
  • Code 68908-C9
    Description VCT.25 p-M5x20-RC-C9
    D 25
    Color C9
    d6g M5
    L 19
    d1 13
    l 20
    l2 8
    R 20
    C 6
    Weight 11
    d6H -
    h -
    Les mer
  • Code 68909-C9
    Description VCT.25 p-M5x25-RC-C9
    D 25
    Color C9
    d6g M5
    L 19
    d1 13
    l 25
    l2 8
    R 20
    C 6
    Weight 12
    d6H -
    h -
    Les mer
  • Code 68911-C9
    Description VCT.32 B-M6-RC-C9
    D 32
    Color C9
    d6H M6
    L 23
    d1 15
    l2 10
    h 12
    R 21
    C 10
    Weight 14
    d6g -
    l -
    Les mer
  • Code 68916-C9
    Description VCT.32 p-M6x16-RC-C9
    D 32
    Color C9
    d6g M6
    L 23
    d1 15
    l 16
    l2 10
    R 21
    C 8
    Weight 15
    d6H -
    h -
    Les mer
  • Code 68917-C9
    Description VCT.32 p-M6x20-RC-C9
    D 32
    Color C9
    d6g M6
    L 23
    d1 15
    l 20
    l2 10
    R 21
    C 8
    Weight 16
    d6H -
    h -
    Les mer
  • Code 68918-C9
    Description VCT.32 p-M6x25-RC-C9
    D 32
    Color C9
    d6g M6
    L 23
    d1 15
    l 25
    l2 10
    R 21
    C 8
    Weight 17
    d6H -
    h -
    Les mer
  • Code 68919-C9
    Description VCT.32 p-M6x30-RC-C9
    D 32
    Color C9
    d6g M6
    L 23
    d1 15
    l 30
    l2 10
    R 21
    C 8
    Weight 18
    d6H -
    h -
    Les mer
  • Code 68921-C9
    Description VCT.40 B-M8-RC-C9
    D 40
    Color C9
    d6H M8
    L 27
    d1 17
    l2 12
    h 18
    R 21.5
    C 18
    Weight 24
    d6g -
    l -
    Les mer
  • Code 68926-C9
    Description VCT.40 p-M8x20-RC-C9
    D 40
    Color C9
    d6g M8
    L 27
    d1 17
    l 20
    l2 12
    R 21.5
    C 16
    Weight 26
    d6H -
    h -
    Les mer
  • Code 68927-C9
    Description VCT.40 p-M8x25-RC-C9
    D 40
    Color C9
    d6g M8
    L 27
    d1 17
    l 25
    l2 12
    R 21.5
    C 16
    Weight 28
    d6H -
    h -
    Les mer
  • Code 68928-C9
    Description VCT.40 p-M8x30-RC-C9
    D 40
    Color C9
    d6g M8
    L 27
    d1 17
    l 30
    l2 12
    R 21.5
    C 16
    Weight 29
    d6H -
    h -
    Les mer
  • Code 68929-C9
    Description VCT.40 p-M8x40-RC-C9
    D 40
    Color C9
    d6g M8
    L 27
    d1 17
    l 40
    l2 12
    R 21.5
    C 16
    Weight 32
    d6H -
    h -
    Les mer
  • Code 68931-C9
    Description VCT.50 B-M10-RC-C9
    D 50
    Color C9
    d6H M10
    L 32
    d1 19
    l2 14
    h 20
    R 22.5
    C 27
    Weight 34
    d6g -
    l -
    Les mer
  • Code 68935-C9
    Description VCT.50 p-M10x20-RC-C9
    D 50
    Color C9
    d6g M10
    L 32
    d1 19
    l 20
    l2 14
    R 22.5
    C 23
    Weight 38
    d6H -
    h -
    Les mer
  • Code 68936-C9
    Description VCT.50 p-M10x25-RC-C9
    D 50
    Color C9
    d6g M10
    L 32
    d1 19
    l 25
    l2 14
    R 22.5
    C 23
    Weight 41
    d6H -
    h -
    Les mer
  • Code 68937-C9
    Description VCT.50 p-M10x30-RC-C9
    D 50
    Color C9
    d6g M10
    L 32
    d1 19
    l 30
    l2 14
    R 22.5
    C 23
    Weight 43
    d6H -
    h -
    Les mer
  • Code 68938-C9
    Description VCT.50 p-M10x40-RC-C9
    D 50
    Color C9
    d6g M10
    L 32
    d1 19
    l 40
    l2 14
    R 22.5
    C 23
    Weight 48
    d6H -
    h -
    Les mer
  • Code 68941-C9
    Description VCT.63 B-M12-RC-C9
    D 63
    Color C9
    d6H M12
    L 37
    d1 22
    l2 16
    h 26
    R 24
    C 50
    Weight 44
    d6g -
    l -
    Les mer
  • Code 68947-C9
    Description VCT.63 p-M12x30-RC-C9
    D 63
    Color C9
    d6g M12
    L 37
    d1 22
    l 30
    l2 16
    R 24
    C 46
    Weight 69
    d6H -
    h -
    Les mer
  • Code 68948-C9
    Description VCT.63 p-M12x40-RC-C9
    D 63
    Color C9
    d6g M12
    L 37
    d1 22
    l 40
    l2 16
    R 24
    C 46
    Weight 75
    d6H -
    h -
    Les mer
  • Code 68949-C9
    Description VCT.63 p-M12x50-RC-C9
    D 63
    Color C9
    d6g M12
    L 37
    d1 22
    l 50
    l2 16
    R 24
    C 46
    Weight 82
    d6H -
    h -
    Les mer
