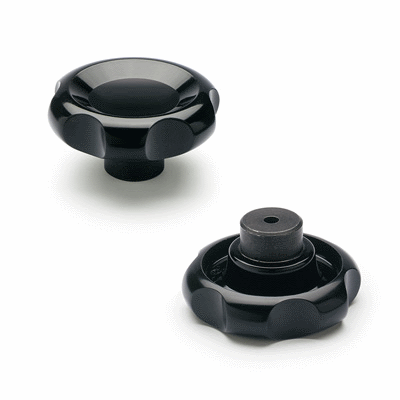

VL.140

Lobe knobs

Teknisk datablad
GN.32049-gn_949_d

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 6 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 74501
    Description VL.140/100
    D
    —
    • —
    d +0.1
    —
    • —
    dH9
    —
    • —
    L
    —
    • —
    B
    —
    • —
    d1
    —
    • —
    d2
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    h
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 74501
    Description VL.140/100
    D 99
    d +0.1 -
    dH9 8
    L 44
    B 20
    d1 36
    d2 30
    l1 31
    l2 14
    h 22
    Weight 325
    Les mer
  • Code 74601
    Description VL.140/130
    D 129
    d +0.1 -
    dH9 8
    L 47
    B 22
    d1 40
    d2 40
    l1 30
    l2 13
    h 20
    Weight 500
    Les mer
  • Code 74101
    Description VL.140/50
    D 51
    d +0.1 6
    dH9 -
    L 29
    B 13
    d1 20
    d2 18
    l1 20
    l2 10
    h 15
    Weight 67
    Les mer
  • Code 74201
    Description VL.140/60
    D 61
    d +0.1 6
    dH9 -
    L 32
    B 16
    d1 20
    d2 18
    l1 20
    l2 10
    h 15
    Weight 87
    Les mer
  • Code 74301
    Description VL.140/70
    D 69
    d +0.1 6
    dH9 -
    L 36
    B 18
    d1 24
    d2 20
    l1 23
    l2 12
    h 15
    Weight 126
    Les mer
  • Code 74401
    Description VL.140/80
    D 82
    d +0.1 6
    dH9 -
    L 40
    B 19
    d1 24
    d2 20
    l1 23
    l2 12
    h 15
    Weight 160
    Les mer
