VTT-LP

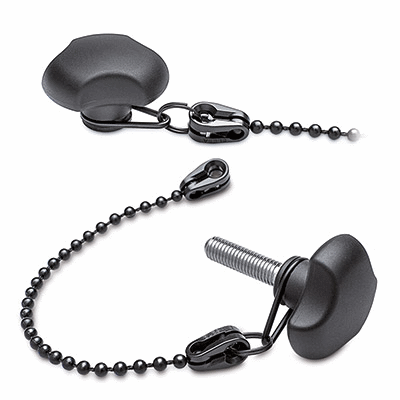

Lobe knobs

Teknisk datablad
GN.32024-gn_949_d

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Color
Accessory color
Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 35 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 168106
    Description VTT.25-B-M5-LP
    D
    —
    • —
    d6H
    —
    • —
    L
    —
    • —
    d1
    —
    • —
    l2
    —
    • —
    h
    —
    • —
    R
    —
    • —
    Weight
    —
    • —
    d6g
    —
    • —
    l
    —
    • —
    CAD
    Les mer
  • Code 168106
    Description VTT.25-B-M5-LP
    D 25
    d6H M5
    L 20
    d1 12
    l2 10
    h 10
    R 20
    Weight 14
    d6g -
    l -
    Les mer
  • Code 168151
    Description VTT.25-p-M5x10-LP
    D 25
    d6g M5
    L 20
    d1 12
    l 10
    l2 10
    R 20
    Weight 10
    d6H -
    h -
    Les mer
  • Code 168152
    Description VTT.25-p-M5x16-LP
    D 25
    d6g M5
    L 20
    d1 12
    l 16
    l2 10
    R 20
    Weight 12
    d6H -
    h -
    Les mer
  • Code 168153
    Description VTT.25-p-M5x20-LP
    D 25
    d6g M5
    L 20
    d1 12
    l 20
    l2 10
    R 20
    Weight 14
    d6H -
    h -
    Les mer
  • Code 168116
    Description VTT.25-SST-M5-LP
    D 25
    d6H M5
    L 20
    d1 12
    l2 10
    h 10
    R 20
    Weight 15
    d6g -
    l -
    Les mer
  • Code 168161
    Description VTT.25-SST-p-M5x10-LP
    D 25
    d6g M5
    L 20
    d1 12
    l 10
    l2 10
    R 20
    Weight 10
    d6H -
    h -
    Les mer
  • Code 168162
    Description VTT.25-SST-p-M5x16-LP
    D 25
    d6g M5
    L 20
    d1 12
    l 16
    l2 10
    R 20
    Weight 12
    d6H -
    h -
    Les mer
  • Code 168163
    Description VTT.25-SST-p-M5x20-LP
    D 25
    d6g M5
    L 20
    d1 12
    l 20
    l2 10
    R 20
    Weight 14
    d6H -
    h -
    Les mer
  • Code 168216
    Description VTT.32-B-M6-LP
    D 32
    d6H M6
    L 23
    d1 14
    l2 11.5
    h 10
    R 21
    Weight 19
    d6g -
    l -
    Les mer
  • Code 168252
    Description VTT.32-p-M6x16-LP
    D 32
    d6g M6
    L 23
    d1 14
    l 16
    l2 11.5
    R 21
    Weight 17
    d6H -
    h -
    Les mer
  • Code 168253
    Description VTT.32-p-M6x20-LP
    D 32
    d6g M6
    L 23
    d1 14
    l 20
    l2 11.5
    R 21
    Weight 19
    d6H -
    h -
    Les mer
  • Code 168254
    Description VTT.32-p-M6x25-LP
    D 32
    d6g M6
    L 23
    d1 14
    l 25
    l2 11.5
    R 21
    Weight 21
    d6H -
    h -
    Les mer
  • Code 168255
    Description VTT.32-p-M6x30-LP
    D 32
    d6g M6
    L 23
    d1 14
    l 30
    l2 11.5
    R 21
    Weight 23
    d6H -
    h -
    Les mer
  • Code 168226
    Description VTT.32-SST-M6-LP
    D 32
    d6H M6
    L 23
    d1 14
    l2 11.5
    h 10
    R 21
    Weight 20
    d6g -
    l -
    Les mer
  • Code 168262
    Description VTT.32-SST-p-M6x16-LP
    D 32
    d6g M6
    L 23
    d1 14
    l 16
    l2 11.5
    R 21
    Weight 17
    d6H -
    h -
    Les mer
  • Code 168263
    Description VTT.32-SST-p-M6x20-LP
    D 32
    d6g M6
    L 23
    d1 14
    l 20
    l2 11.5
    R 21
    Weight 19
    d6H -
    h -
    Les mer
  • Code 168264
    Description VTT.32-SST-p-M6x25-LP
    D 32
    d6g M6
    L 23
    d1 14
    l 25
    l2 11.5
    R 21
    Weight 21
    d6H -
    h -
    Les mer
  • Code 168336
    Description VTT.40-B-M8-LP
    D 40
    d6H M8
    L 27
    d1 16
    l2 13.5
    h 13
    R 21.5
    Weight 30
    d6g -
    l -
    Les mer
  • Code 168371
    Description VTT.40-p-M8x20-LP
    D 40
    d6g M8
    L 27
    d1 16
    l 20
    l2 13.5
    R 21.5
    Weight 26
    d6H -
    h -
    Les mer
  • Code 168372
    Description VTT.40-p-M8x25-LP
    D 40
    d6g M8
    L 27
    d1 16
    l 25
    l2 13.5
    R 21.5
    Weight 30
    d6H -
    h -
    Les mer
  • Code 168373
    Description VTT.40-p-M8x30-LP
    D 40
    d6g M8
    L 27
    d1 16
    l 30
    l2 13.5
    R 21.5
    Weight 34
    d6H -
    h -
    Les mer
  • Code 168375
    Description VTT.40-p-M8x40-LP
    D 40
    d6g M8
    L 27
    d1 16
    l 40
    l2 13.5
    R 21.5
    Weight 38
    d6H -
    h -
    Les mer
  • Code 168346
    Description VTT.40-SST-M8-LP
    D 40
    d6H M8
    L 27
    d1 16
    l2 13.5
    h 13
    R 21.5
    Weight 30
    d6g -
    l -
    Les mer
  • Code 168381
    Description VTT.40-SST-p-M8x20-LP
    D 40
    d6g M8
    L 27
    d1 16
    l 20
    l2 13.5
    R 21.5
    Weight 26
    d6H -
    h -
    Les mer
  • Code 168383
    Description VTT.40-SST-p-M8x30-LP
    D 40
    d6g M8
    L 27
    d1 16
    l 30
    l2 13.5
    R 21.5
    Weight 35
    d6H -
    h -
    Les mer
  • Code 168385
    Description VTT.40-SST-p-M8x40-LP
    D 40
    d6g M8
    L 27
    d1 16
    l 40
    l2 13.5
    R 21.5
    Weight 39
    d6H -
    h -
    Les mer
  • Code 168466
    Description VTT.50-B-M10-LP
    D 50
    d6H M10
    L 30
    d1 19
    l2 15
    h 17
    R 22.5
    Weight 45
    d6g -
    l -
    Les mer
  • Code 168481
    Description VTT.50-p-M10x20-LP
    D 50
    d6g M10
    L 30
    d1 19
    l 20
    l2 15
    R 22.5
    Weight 54
    d6H -
    h -
    Les mer
  • Code 168482
    Description VTT.50-p-M10x25-LP
    D 50
    d6g M10
    L 30
    d1 19
    l 25
    l2 15
    R 22.5
    Weight 59
    d6H -
    h -
    Les mer
  • Code 168483
    Description VTT.50-p-M10x30-LP
    D 50
    d6g M10
    L 30
    d1 19
    l 30
    l2 15
    R 22.5
    Weight 64
    d6H -
    h -
    Les mer
  • Code 168485
    Description VTT.50-p-M10x40-LP
    D 50
    d6g M10
    L 30
    d1 19
    l 40
    l2 15
    R 22.5
    Weight 69
    d6H -
    h -
    Les mer
  • Code 168476
    Description VTT.50-SST-M10-LP
    D 50
    d6H M10
    L 30
    d1 19
    l2 15
    h 17
    R 22.5
    Weight 43
    d6g -
    l -
    Les mer
  • Code 168491
    Description VTT.50-SST-p-M10x20-LP
    D 50
    d6g M10
    L 30
    d1 19
    l 20
    l2 15
    R 22.5
    Weight 59
    d6H -
    h -
    Les mer
  • Code 168493
    Description VTT.50-SST-p-M10x30-LP
    D 50
    d6g M10
    L 30
    d1 19
    l 30
    l2 15
    R 22.5
    Weight 64
    d6H -
    h -
    Les mer
  • Code 168495
    Description VTT.50-SST-p-M10x40-LP
    D 50
    d6g M10
    L 30
    d1 19
    l 40
    l2 15
    R 22.5
    Weight 70
    d6H -
    h -
    Les mer
