VTT-SST-MD

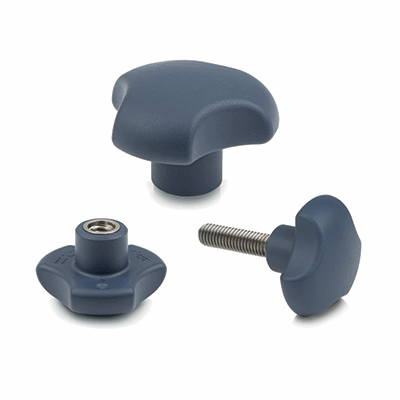

Lobe knobs

Teknisk datablad
GN.32021-gn_949_a

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Color
Accessory color
Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 6 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 195346
    Description VTT.40-SST-M8-MD
    D
    —
    • —
    d6H
    —
    • —
    L
    —
    • —
    d1
    —
    • —
    l2
    —
    • —
    h
    —
    • —
    Weight
    —
    • —
    d6g
    —
    • —
    l
    —
    • —
    CAD
    Les mer
  • Code 195346
    Description VTT.40-SST-M8-MD
    D 40
    d6H M8
    L 27
    d1 16
    l2 13.5
    h 13
    Weight 23
    d6g -
    l -
    Les mer
  • Code 195381
    Description VTT.40-SST-p-M8x20-MD
    D 40
    d6g M8
    L 27
    d1 16
    l 20
    l2 13.5
    Weight 28
    d6H -
    h -
    Les mer
  • Code 195383
    Description VTT.40-SST-p-M8x30-MD
    D 40
    d6g M8
    L 27
    d1 16
    l 30
    l2 13.5
    Weight 30
    d6H -
    h -
    Les mer
  • Code 195476
    Description VTT.50-SST-M10-MD
    D 50
    d6H M10
    L 30
    d1 19
    l2 15
    h 17
    Weight 26
    d6g -
    l -
    Les mer
  • Code 195493
    Description VTT.50-SST-p-M10x30-MD
    D 50
    d6g M10
    L 30
    d1 19
    l 30
    l2 15
    Weight 47
    d6H -
    h -
    Les mer
  • Code 195495
    Description VTT.50-SST-p-M10x40-MD
    D 50
    d6g M10
    L 30
    d1 19
    l 40
    l2 15
    Weight 52
    d6H -
    h -
    Les mer
