VTT-SST-VD

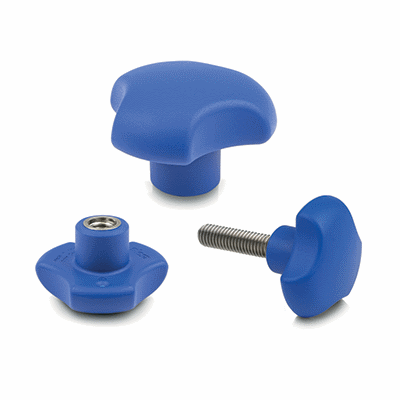

Lobe knobs

Teknisk datablad
GN.32019-gn_949_d

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 6 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 190346
    Description VTT.40-SST-M8-VD
    D
    —
    • —
    d6H
    —
    • —
    L
    —
    • —
    d1
    —
    • —
    l2
    —
    • —
    h
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 190346
    Description VTT.40-SST-M8-VD
    D 40
    d6H M8
    L 27
    d1 16
    l2 13.5
    h 13
    Weight 24
    Les mer
  • Code 190381
    Description VTT.40-SST-p-M8x20-VD
    D 40
    d6g M8
    L 27
    d1 16
    l 20
    l2 13.5
    Weight 30
    Les mer
  • Code 190383
    Description VTT.40-SST-p-M8x30-VD
    D 40
    d6g M8
    L 27
    d1 16
    l 30
    l2 13.5
    Weight 33
    Les mer
  • Code 190476
    Description VTT.50-SST-M10-VD
    D 50
    d6H M10
    L 30
    d1 19
    l2 15
    h 17
    Weight 43
    Les mer
  • Code 190493
    Description VTT.50-SST-p-M10x30-VD
    D 50
    d6g M10
    L 30
    d1 19
    l 30
    l2 15
    Weight 63
    Les mer
  • Code 190495
    Description VTT.50-SST-p-M10x40-VD
    D 50
    d6g M10
    L 30
    d1 19
    l 40
    l2 15
    Weight 63
    Les mer
