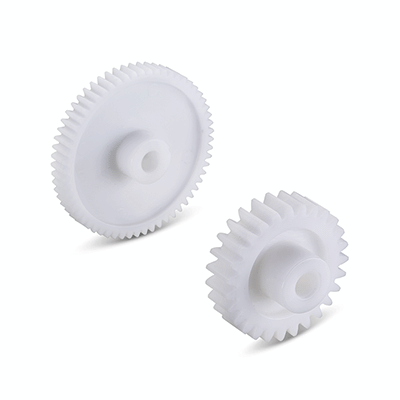

ZCP

Transmission elements

Teknisk datablad
CE.70952-ga11_ga12

Viser alle 42 resultater

    Code 555100
    Description ZCP-0.5-100
    Module M
    —
    • —
    No. of teeth Z
    —
    • —
    Dp
    —
    • —
    D
    —
    • —
    L
    —
    • —
    d
    —
    • —
    d1
    —
    • —
    d2
    —
    • —
    l1
    —
    • —
    Max. torque
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 555100
    Description ZCP-0.5-100
    Module M 0.5
    No. of teeth Z 100
    Dp 50
    D 51
    L 10
    d 6
    d1 15
    d2 44
    l1 3
    Max. torque 17.3
    Weight 8
    Les mer
  • Code 555012
    Description ZCP-0.5-12
    Module M 0.5
    No. of teeth Z 12
    Dp 6
    D 7
    L 7
    d 2
    d1 4
    d2 -
    l1 3
    Max. torque 2
    Weight 1
    Les mer
  • Code 555120
    Description ZCP-0.5-120
    Module M 0.5
    No. of teeth Z 120
    Dp 60
    D 61
    L 10
    d 6
    d1 15
    d2 54
    l1 3
    Max. torque 20.8
    Weight 10
    Les mer
  • Code 555013
    Description ZCP-0.5-13
    Module M 0.5
    No. of teeth Z 13
    Dp 6.5
    D 7.5
    L 7
    d 2
    d1 4
    d2 -
    l1 3
    Max. torque 2.2
    Weight 1
    Les mer
  • Code 555014
    Description ZCP-0.5-14
    Module M 0.5
    No. of teeth Z 14
    Dp 7
    D 8
    L 7
    d 2
    d1 5
    d2 -
    l1 3
    Max. torque 2.4
    Weight 1
    Les mer
  • Code 555015
    Description ZCP-0.5-15
    Module M 0.5
    No. of teeth Z 15
    Dp 7.5
    D 8.5
    L 10
    d 3
    d1 5.8
    d2 -
    l1 3
    Max. torque 2.5
    Weight 1
    Les mer
  • Code 555016
    Description ZCP-0.5-16
    Module M 0.5
    No. of teeth Z 16
    Dp 8
    D 9
    L 10
    d 3
    d1 5.8
    d2 -
    l1 3
    Max. torque 2.7
    Weight 1
    Les mer
  • Code 555017
    Description ZCP-0.5-17
    Module M 0.5
    No. of teeth Z 17
    Dp 8.5
    D 9.5
    L 10
    d 3
    d1 5.8
    d2 -
    l1 3
    Max. torque 2.9
    Weight 1
    Les mer
  • Code 555018
    Description ZCP-0.5-18
    Module M 0.5
    No. of teeth Z 18
    Dp 9
    D 10
    L 10
    d 4
    d1 7.4
    d2 -
    l1 3
    Max. torque 3.1
    Weight 1
    Les mer
  • Code 555019
    Description ZCP-0.5-19
    Module M 0.5
    No. of teeth Z 19
    Dp 9.5
    D 10.5
    L 10
    d 4
    d1 7.4
    d2 -
    l1 3
    Max. torque 3.2
    Weight 1
    Les mer
  • Code 555020
    Description ZCP-0.5-20
    Module M 0.5
    No. of teeth Z 20
    Dp 10
    D 11
    L 10
    d 4
    d1 7.4
    d2 -
    l1 3
    Max. torque 3.4
    Weight 1
    Les mer
  • Code 555021
    Description ZCP-0.5-21
    Module M 0.5
    No. of teeth Z 21
    Dp 10.5
    D 11.5
    L 10
    d 4
    d1 8
    d2 -
    l1 3
    Max. torque 3.5
    Weight 1
    Les mer
  • Code 555022
    Description ZCP-0.5-22
    Module M 0.5
    No. of teeth Z 22
    Dp 11
    D 12
    L 10
    d 4
    d1 9
    d2 -
    l1 3
    Max. torque 3.8
    Weight 1
    Les mer
  • Code 555023
    Description ZCP-0.5-23
    Module M 0.5
    No. of teeth Z 23
    Dp 11.5
    D 12.5
    L 10
    d 4
    d1 9
    d2 -
    l1 3
    Max. torque 3.9
    Weight 1
    Les mer
  • Code 555024
    Description ZCP-0.5-24
    Module M 0.5
    No. of teeth Z 24
    Dp 12
    D 13
    L 10
    d 4
    d1 9
    d2 -
    l1 3
    Max. torque 4.1
    Weight 1
    Les mer
  • Code 555025
    Description ZCP-0.5-25
    Module M 0.5
    No. of teeth Z 25
    Dp 12.5
    D 13.5
    L 10
    d 4
    d1 9
    d2 -
    l1 3
    Max. torque 4.3
    Weight 1
    Les mer
  • Code 555026
    Description ZCP-0.5-26
    Module M 0.5
    No. of teeth Z 26
    Dp 13
    D 14
    L 10
    d 4
    d1 9
    d2 -
    l1 3
    Max. torque 4.5
    Weight 1
    Les mer
  • Code 555027
    Description ZCP-0.5-27
    Module M 0.5
    No. of teeth Z 27
    Dp 13.5
    D 14.5
    L 10
    d 4
    d1 9
    d2 -
    l1 3
    Max. torque 4.6
    Weight 1
    Les mer
  • Code 555028
    Description ZCP-0.5-28
    Module M 0.5
    No. of teeth Z 28
    Dp 14
    D 15
    L 10
    d 4
    d1 9
    d2 -
    l1 3
    Max. torque 4.8
    Weight 1
    Les mer
  • Code 555030
    Description ZCP-0.5-30
    Module M 0.5
    No. of teeth Z 30
    Dp 15
    D 16
    L 10
    d 4
    d1 12
    d2 -
    l1 3
    Max. torque 5.2
    Weight 2
    Les mer
  • Code 555032
    Description ZCP-0.5-32
    Module M 0.5
    No. of teeth Z 32
    Dp 16
    D 17
    L 10
    d 4
    d1 12
    d2 -
    l1 3
    Max. torque 5.5
    Weight 2
    Les mer
  • Code 555035
    Description ZCP-0.5-35
    Module M 0.5
    No. of teeth Z 35
    Dp 17.5
    D 18.5
    L 10
    d 4
    d1 12
    d2 -
    l1 3
    Max. torque 6
    Weight 2
    Les mer
  • Code 555036
    Description ZCP-0.5-36
    Module M 0.5
    No. of teeth Z 36
    Dp 18
    D 19
    L 10
    d 4
    d1 12
    d2 -
    l1 3
    Max. torque 6.2
    Weight 2
    Les mer
  • Code 555038
    Description ZCP-0.5-38
    Module M 0.5
    No. of teeth Z 38
    Dp 19
    D 20
    L 10
    d 4
    d1 12
    d2 -
    l1 3
    Max. torque 6.6
    Weight 2
    Les mer
  • Code 555040
    Description ZCP-0.5-40
    Module M 0.5
    No. of teeth Z 40
    Dp 20
    D 21
    L 10
    d 4
    d1 12
    d2 16.5
    l1 3
    Max. torque 6.9
    Weight 2
    Les mer
  • Code 555042
    Description ZCP-0.5-42
    Module M 0.5
    No. of teeth Z 42
    Dp 21
    D 22
    L 10
    d 4
    d1 12
    d2 16.5
    l1 3
    Max. torque 7.3
    Weight 2
    Les mer
  • Code 555045
    Description ZCP-0.5-45
    Module M 0.5
    No. of teeth Z 45
    Dp 22.5
    D 23.5
    L 10
    d 4
    d1 12
    d2 16.5
    l1 3
    Max. torque 7.7
    Weight 2
    Les mer
  • Code 555048
    Description ZCP-0.5-48
    Module M 0.5
    No. of teeth Z 48
    Dp 24
    D 25
    L 10
    d 6
    d1 15
    d2 20
    l1 3
    Max. torque 8.3
    Weight 3
    Les mer
  • Code 555050
    Description ZCP-0.5-50
    Module M 0.5
    No. of teeth Z 50
    Dp 25
    D 26
    L 10
    d 6
    d1 15
    d2 20
    l1 3
    Max. torque 8.6
    Weight 3
    Les mer
  • Code 555052
    Description ZCP-0.5-52
    Module M 0.5
    No. of teeth Z 52
    Dp 26
    D 27
    L 10
    d 6
    d1 15
    d2 20
    l1 3
    Max. torque 9
    Weight 3
    Les mer
  • Code 555054
    Description ZCP-0.5-54
    Module M 0.5
    No. of teeth Z 54
    Dp 27
    D 28
    L 10
    d 6
    d1 15
    d2 20
    l1 3
    Max. torque 9.3
    Weight 3
    Les mer
  • Code 555055
    Description ZCP-0.5-55
    Module M 0.5
    No. of teeth Z 55
    Dp 27.5
    D 28.5
    L 10
    d 6
    d1 15
    d2 23
    l1 3
    Max. torque 9.5
    Weight 3
    Les mer
  • Code 555056
    Description ZCP-0.5-56
    Module M 0.5
    No. of teeth Z 56
    Dp 28
    D 29
    L 10
    d 6
    d1 15
    d2 23
    l1 3
    Max. torque 9.7
    Weight 4
    Les mer
  • Code 555060
    Description ZCP-0.5-60
    Module M 0.5
    No. of teeth Z 60
    Dp 30
    D 31
    L 10
    d 6
    d1 15
    d2 23
    l1 3
    Max. torque 10.4
    Weight 4
    Les mer
  • Code 555064
    Description ZCP-0.5-64
    Module M 0.5
    No. of teeth Z 64
    Dp 32
    D 33
    L 10
    d 6
    d1 15
    d2 23
    l1 3
    Max. torque 11.1
    Weight 4
    Les mer
  • Code 555065
    Description ZCP-0.5-65
    Module M 0.5
    No. of teeth Z 65
    Dp 32.5
    D 33.5
    L 10
    d 6
    d1 15
    d2 23
    l1 3
    Max. torque 11.2
    Weight 4
    Les mer
  • Code 555070
    Description ZCP-0.5-70
    Module M 0.5
    No. of teeth Z 70
    Dp 35
    D 36
    L 10
    d 6
    d1 15
    d2 30
    l1 3
    Max. torque 12.1
    Weight 5
    Les mer
  • Code 555072
    Description ZCP-0.5-72
    Module M 0.5
    No. of teeth Z 72
    Dp 36
    D 37
    L 10
    d 6
    d1 15
    d2 30
    l1 3
    Max. torque 12.5
    Weight 5
    Les mer
  • Code 555075
    Description ZCP-0.5-75
    Module M 0.5
    No. of teeth Z 75
    Dp 37.5
    D 38.5
    L 10
    d 6
    d1 15
    d2 33
    l1 3
    Max. torque 13
    Weight 5
    Les mer
  • Code 555080
    Description ZCP-0.5-80
    Module M 0.5
    No. of teeth Z 80
    Dp 40
    D 41
    L 10
    d 6
    d1 15
    d2 33
    l1 3
    Max. torque 13.7
    Weight 6
    Les mer
  • Code 555090
    Description ZCP-0.5-90
    Module M 0.5
    No. of teeth Z 90
    Dp 45
    D 46
    L 10
    d 6
    d1 15
    d2 39
    l1 3
    Max. torque 15.6
    Weight 7
    Les mer
  • Code 555096
    Description ZCP-0.5-96
    Module M 0.5
    No. of teeth Z 96
    Dp 48
    D 49
    L 10
    d 6
    d1 15
    d2 42
    l1 3
    Max. torque 16.5
    Weight 8
    Les mer
